Dualsky DSXM52192 GA3500R.11 180kv 30cc Racing Edition Brushless Motor

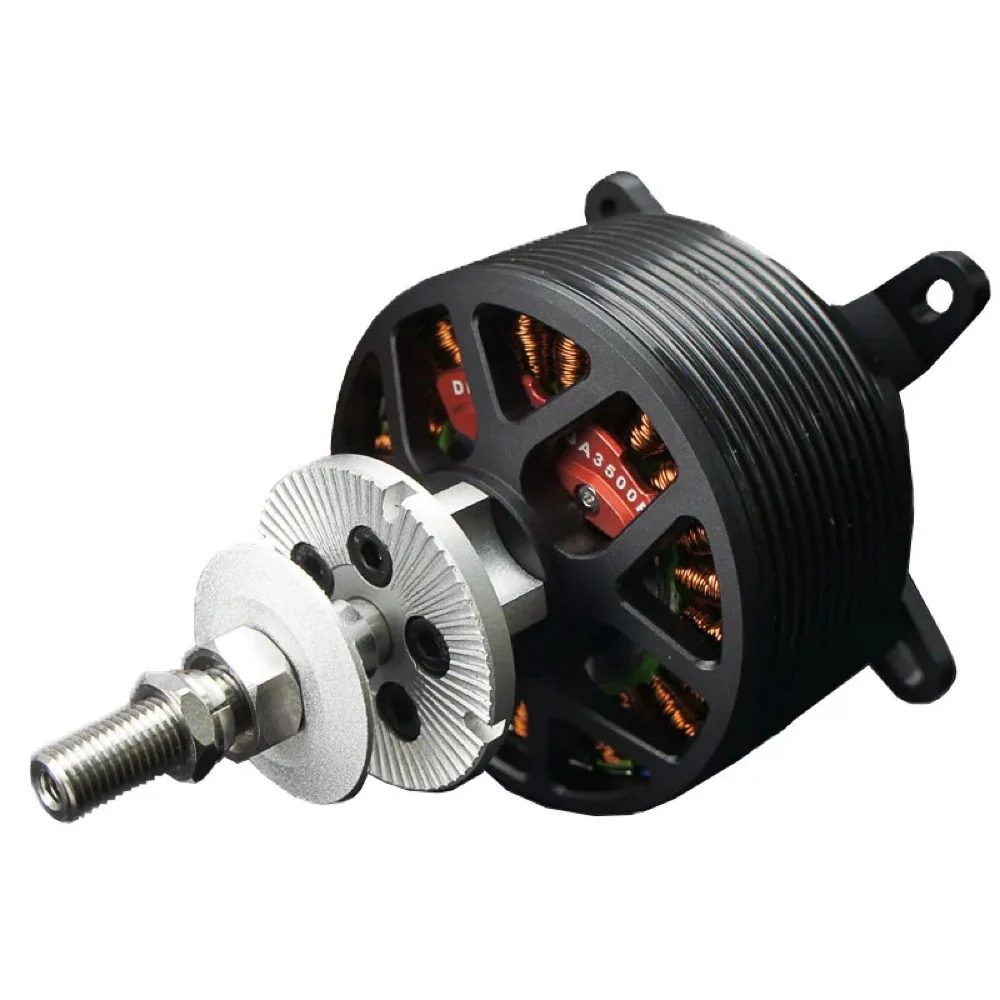

Product image 1

Dualsky DSXM52192 GA3500R.11 180kv 30cc Racing Edition Brushless Motor

Dualsky DSXM52192 GA3500R.11 180kv 30cc Racing Edition Brushless Motor

Dualsky GA3500R Racing Edition X-motor for 35cc class aircraft. The GA3500R is an upgraded version of the GA3500.10 (180KV)

Specifications

  • KV: 180
  • Slots & Poles: 24,28
  • Ri (mOhm): 35.5
  • Io @10V (A): 1
  • Burst Current (15S): 78A, 5.17N*M
  • Peak Power (15S): 3460 (4.78HP)
  • Battery: 30-51V, 10-12S LiPo
  • Weight: 538g (body only), 628g (w/ accessories)
  • Dimensions (DxL): 71x78mm
  • Shaft diameter: 9mm internal, 8mm output
  • Mounting holes: 71mm to 77mm
  • Weight of sports airplane: Up to 11kg
  • Weight of 3D airplane: Up to 5kg
  • Recommended propellers (12S): 20x10E to 22x10E
$88.23

Original: $294.11

-70%
Dualsky DSXM52192 GA3500R.11 180kv 30cc Racing Edition Brushless Motor—

$294.11

$88.23

Product Information

Shipping & Returns

Description

Dualsky GA3500R Racing Edition X-motor for 35cc class aircraft. The GA3500R is an upgraded version of the GA3500.10 (180KV)

Specifications

  • KV: 180
  • Slots & Poles: 24,28
  • Ri (mOhm): 35.5
  • Io @10V (A): 1
  • Burst Current (15S): 78A, 5.17N*M
  • Peak Power (15S): 3460 (4.78HP)
  • Battery: 30-51V, 10-12S LiPo
  • Weight: 538g (body only), 628g (w/ accessories)
  • Dimensions (DxL): 71x78mm
  • Shaft diameter: 9mm internal, 8mm output
  • Mounting holes: 71mm to 77mm
  • Weight of sports airplane: Up to 11kg
  • Weight of 3D airplane: Up to 5kg
  • Recommended propellers (12S): 20x10E to 22x10E
