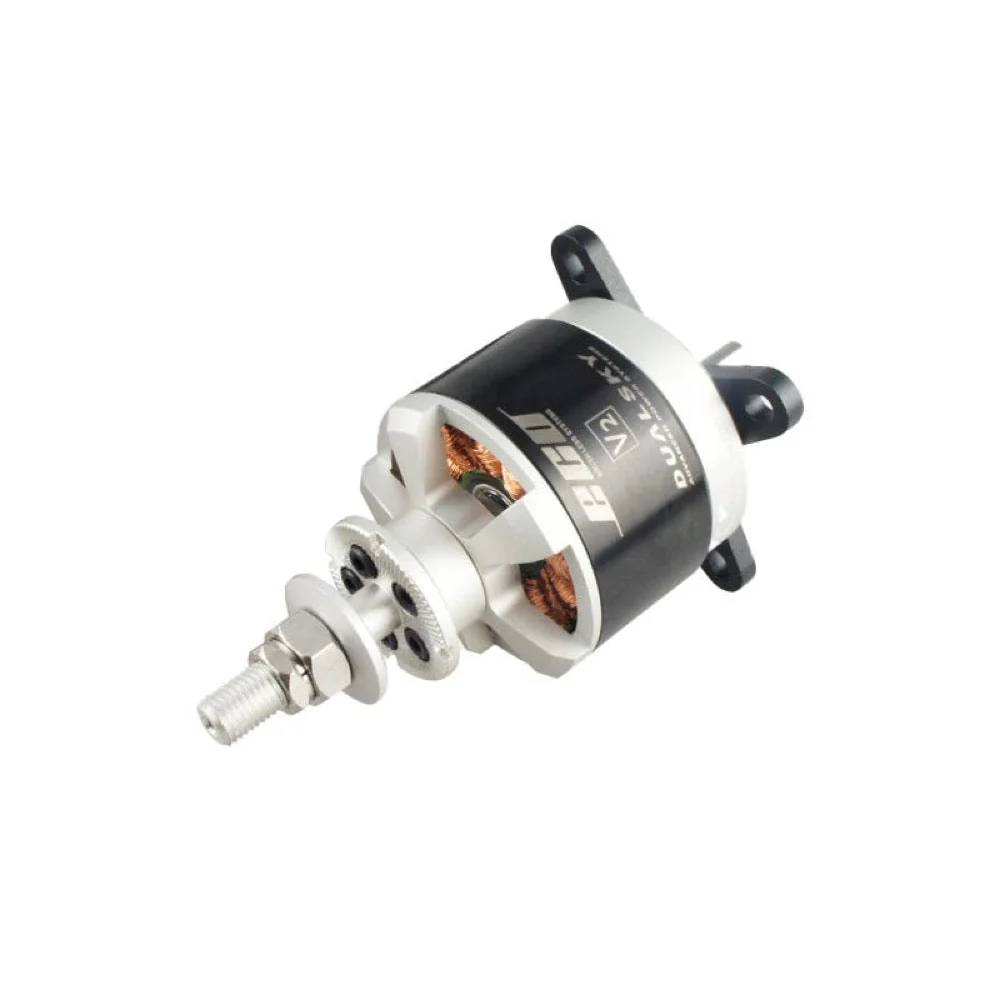

Dualsky DSXM51674 ECO 4120C 500kv Brushless Motor
ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This ECO 4120C 500kv motor is designed to be the electric equivalent of a .46 - .55 2-stroke engine.
Features
- Classic Dualsky five-spokes back cover with simple lines
- Motor structure strength increased by 25%
- Optimised stress distribution and strength increased without increasing the weight
- High strength main shaft
- High temperature resistant, high toughness epoxy glue
- High precision double sides dynamic balancing
- Waterproof splash (ball bearing not waterproof)
- Rust-proof main shaft
Specification
- KV: 500
- Turns: 8
- Weight: 280g
- Size (D x L): 49.5 x 45.2
- Slots & Poles: 12N14P
- Ri (mOhm): 25
- Io @ 10V (A): 1.1
- No. of Cells (LiPo): 5S, 6S
- Max. Efficiency Current (15S) [A]: 36
- Max. Burst Current (15S) [A]: 60
- Max. Power (15S) [W]: 1440
- Max. Torque: 1.38
- Shaft Diameter: 6
- Mounting Holes Pitch: 30/30
- Input Connectors: GC4.0
- Recommended ESC: XC-65-LITE or XC6018BA
- Propeller: 5S: 16x8E, 15x8E or 6S: 14x7E, 15x8E
- Class: .46-.55 2-stroke
